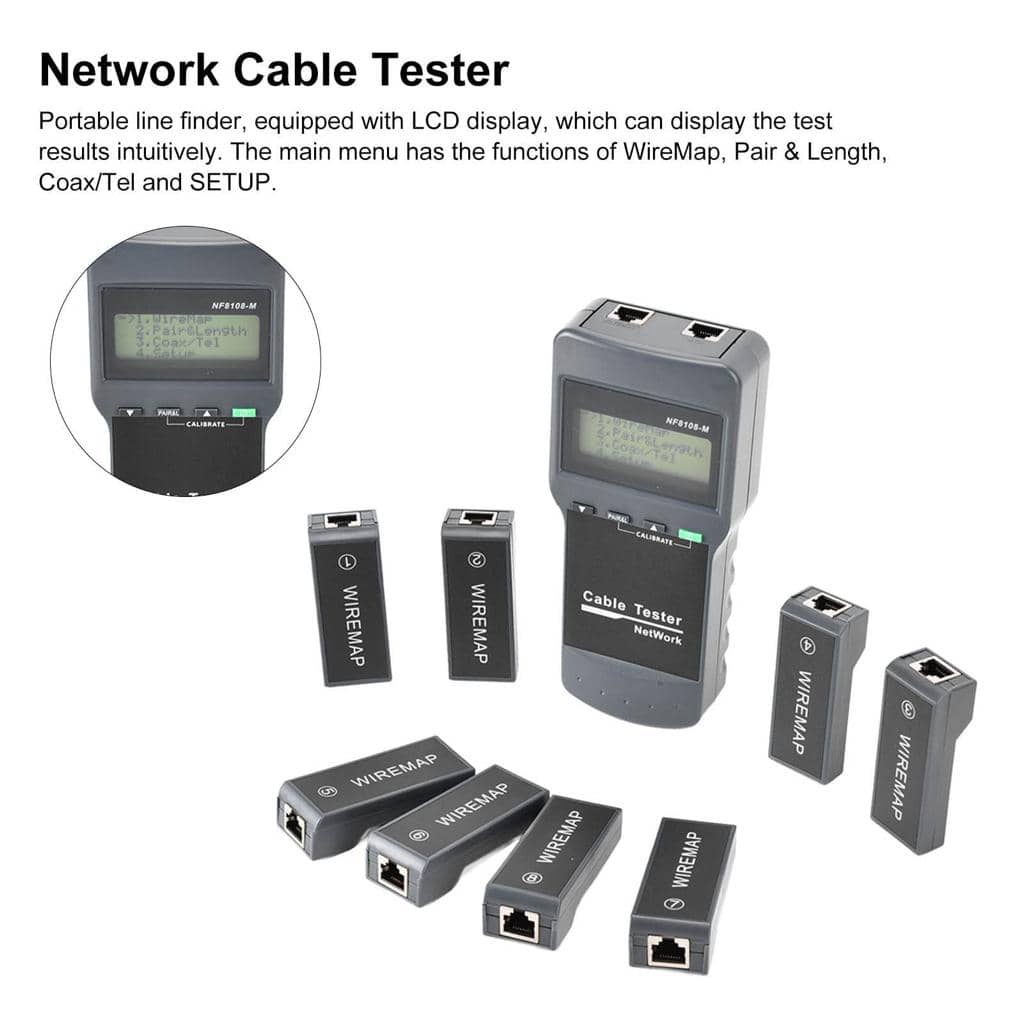

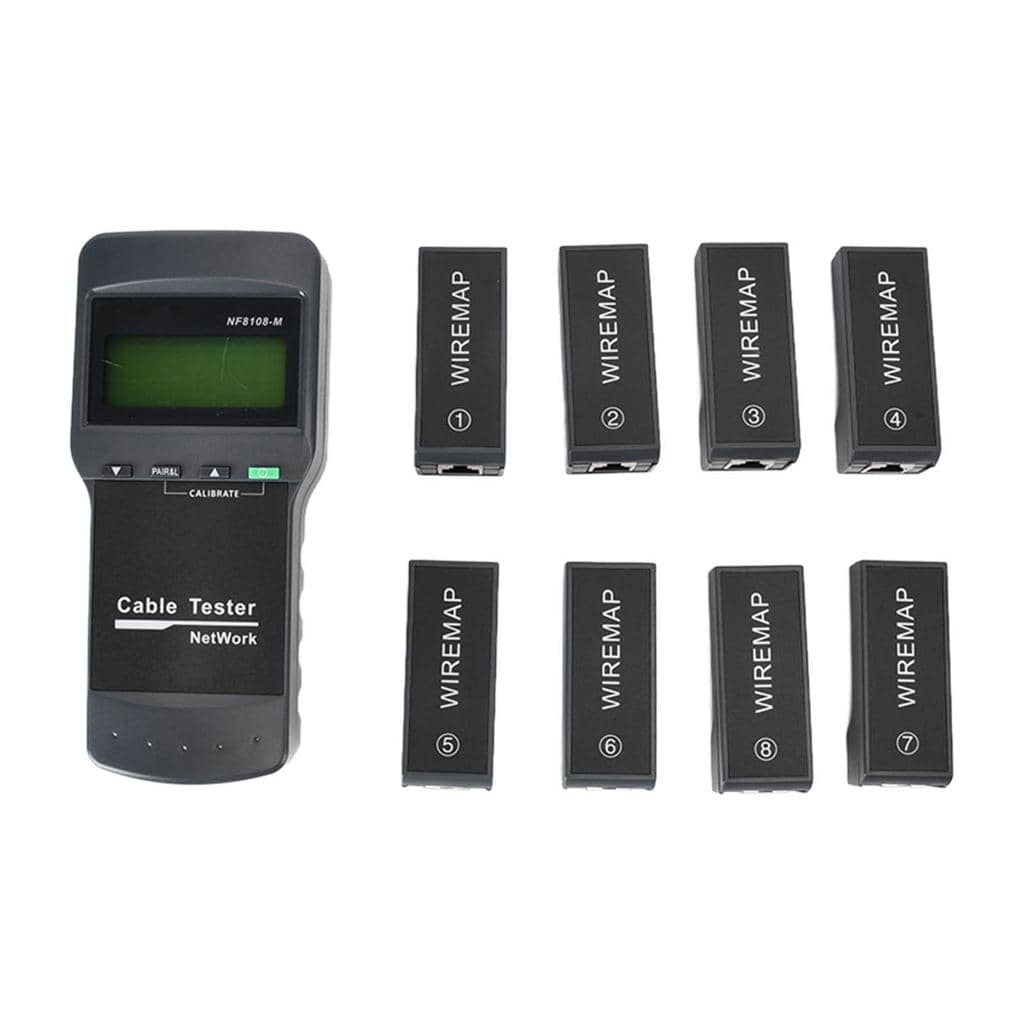

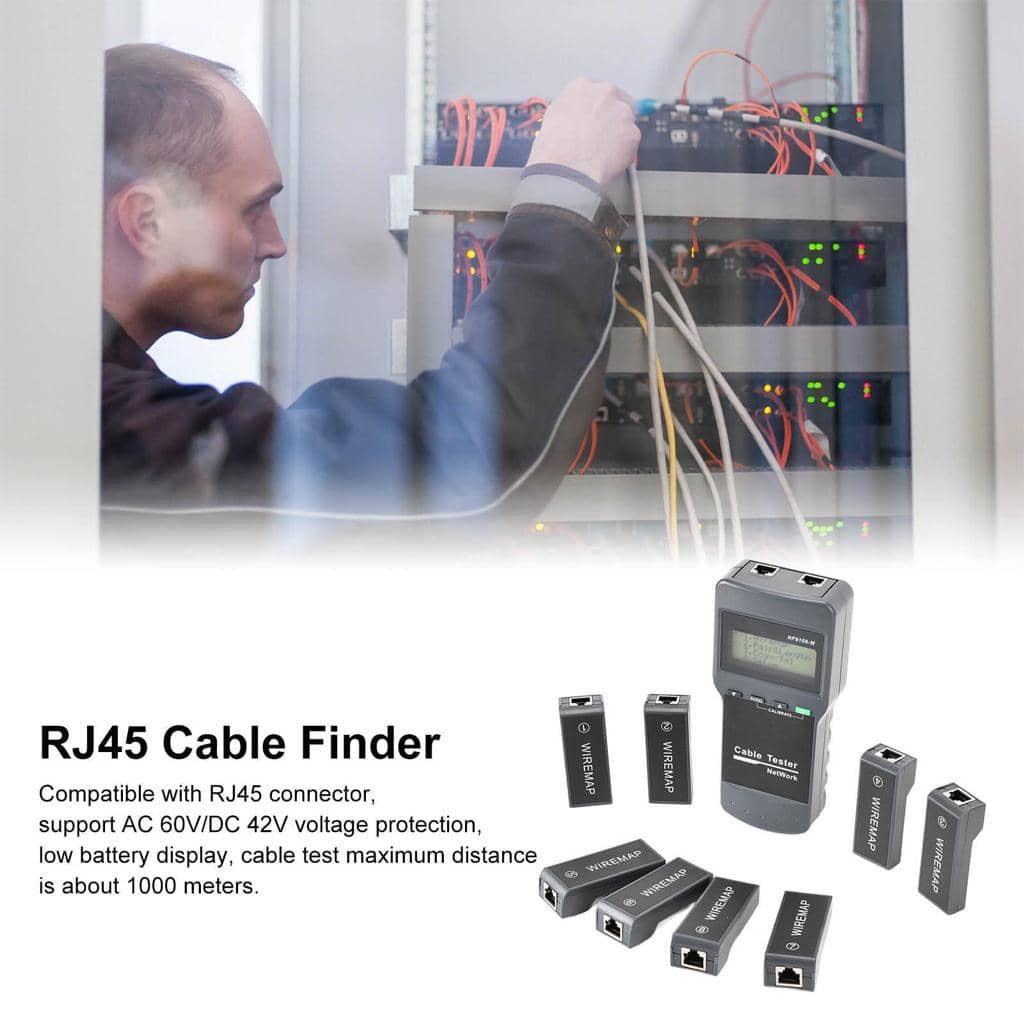

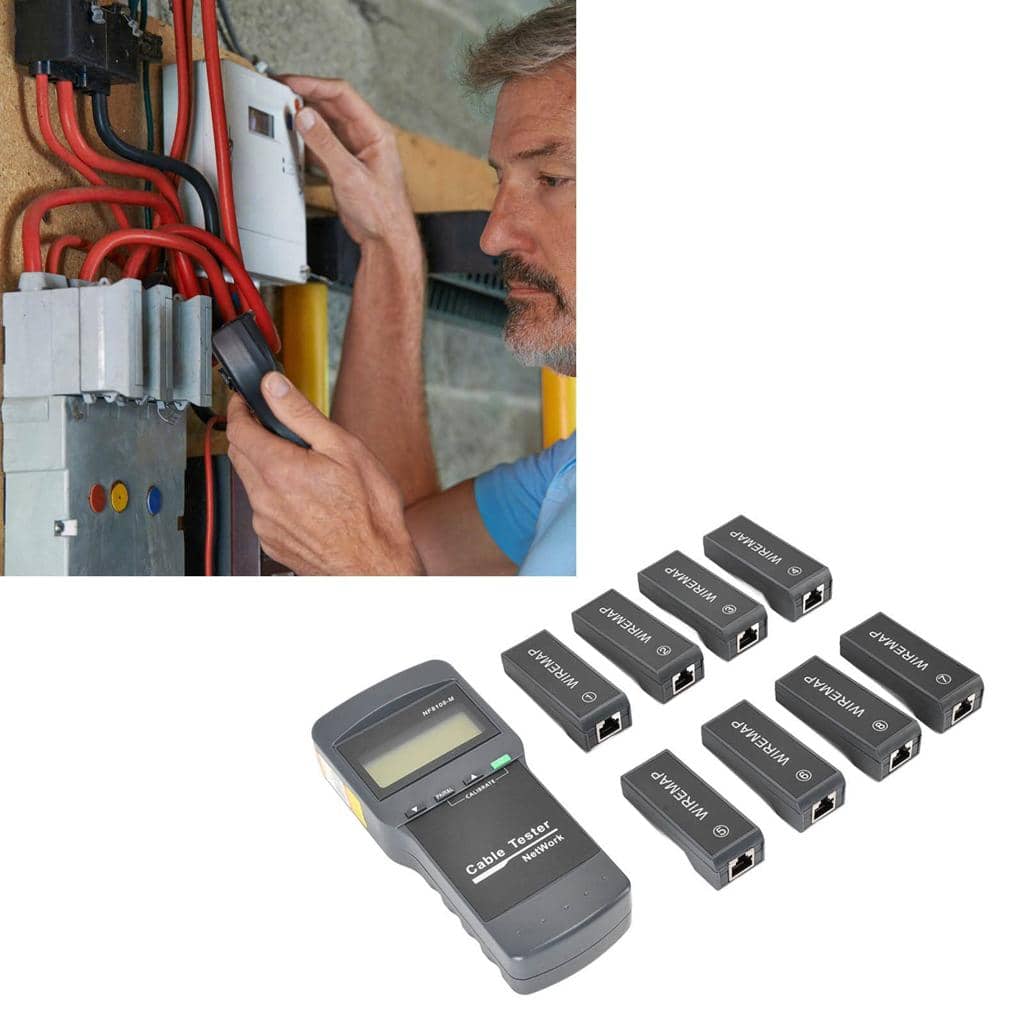

NF8108-M NETWORK CABLE LENGTH TESTER

Original price was: $86.00.Current price is: $76.33. inc. VAT

Main functions:
Check wiring error in 51, 6E, coaxial cable and telephone line.
• Applicable for open circuit, short circuit, jumper wire, reverses connection or cross-talk interference.
• Length measurement of twin twisted cable scope for 1000m (3200ft).
With 8 far end jacks to locate cable wiremap.
• The length of calibrating cable is more than 10m.

NF8108-M Transmitter specifications
Indictor – LCD 53x25mm   Max.distance of cable map – 1000m
Max.working current. – <70mA
Compatible connectors -RJ45
Function selection – 3 position buttons&1 power switch
Faults LCD display – LCD display
Voltage protection – AC 60V/DC 42V
Low battery display – LCD (6.5V)
Battery type – DC 4×1.5V
Dimension (LXWXD) -184×84x46mm

NF8108-M Remote unit specifications
Compatible connectors – RJ45
Dimension (LxW×D) – 78×33×22mm
Remote identifier – 8
