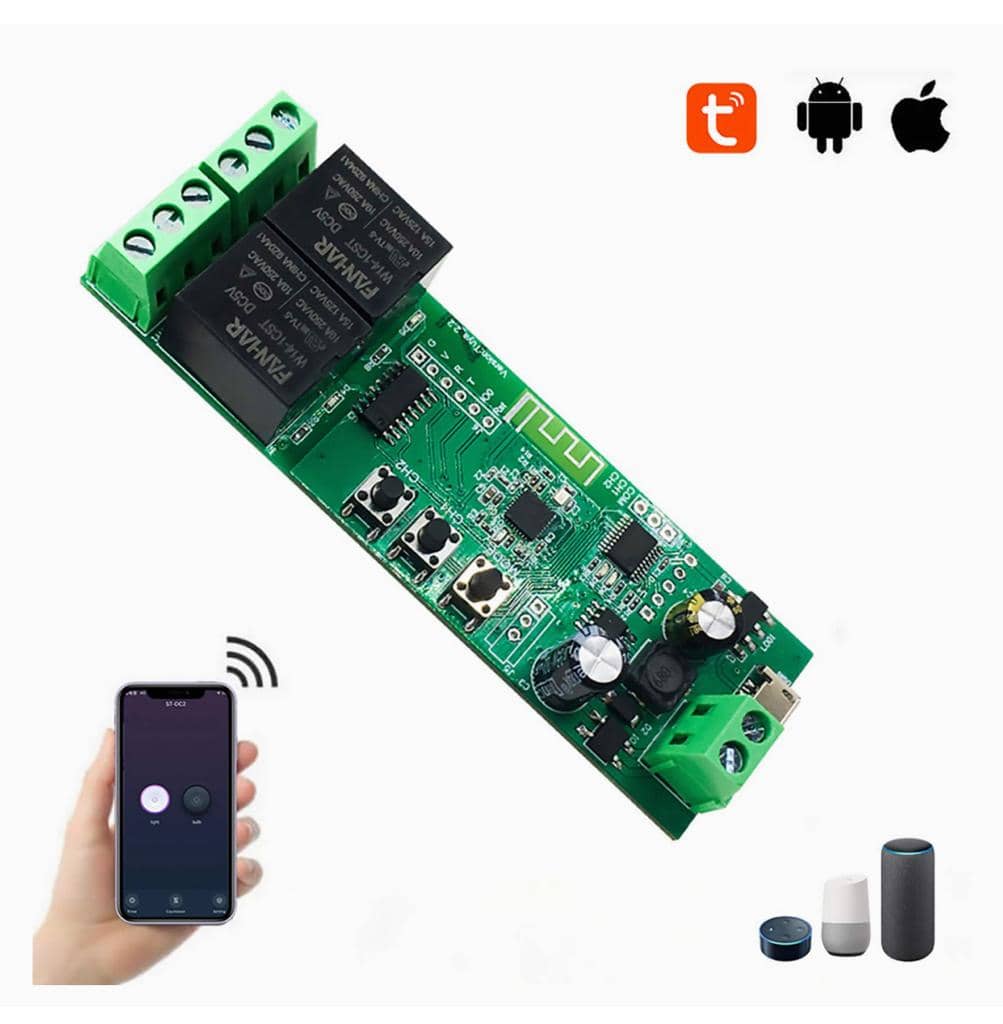

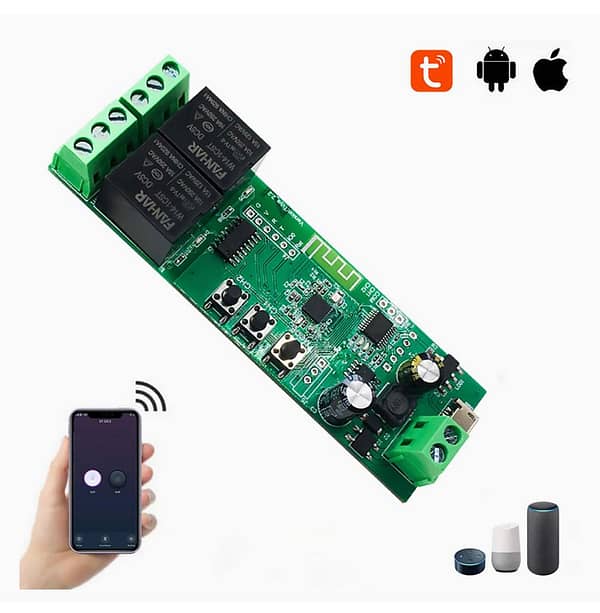

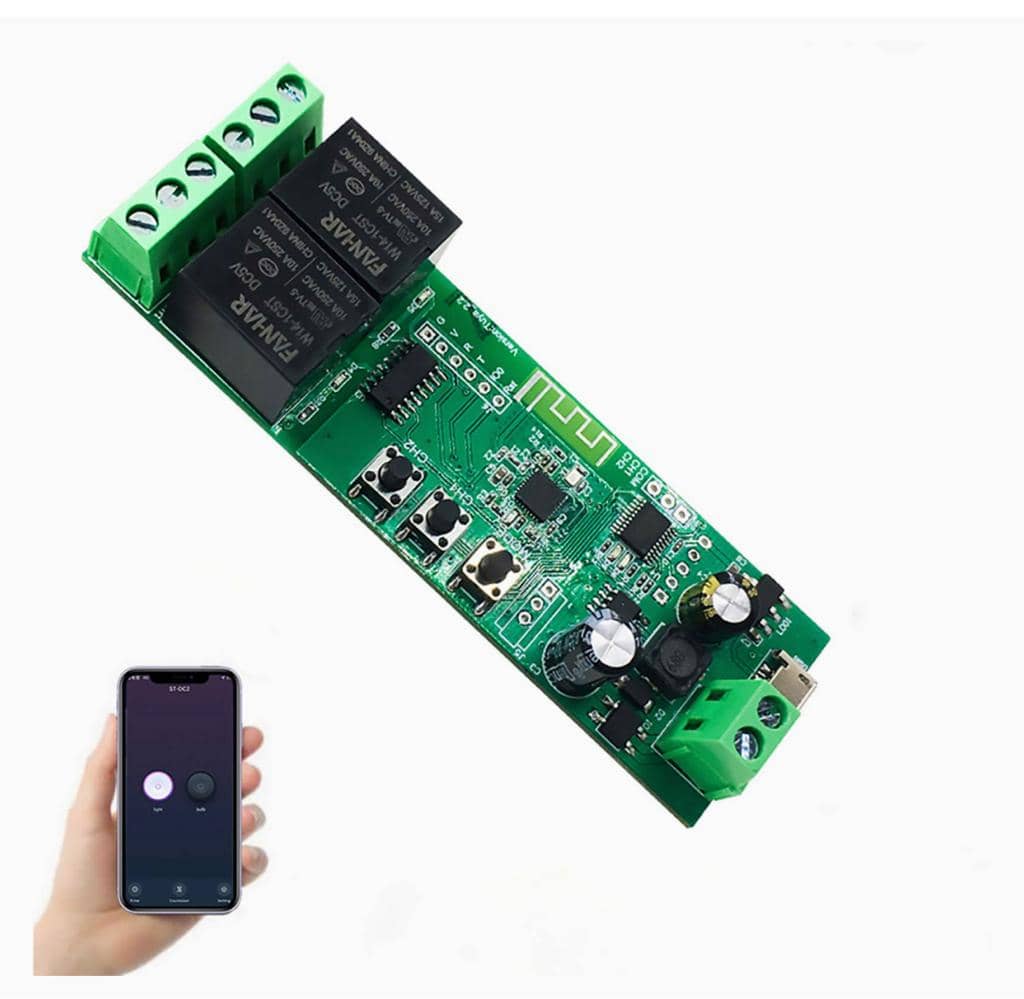

Smart 2Ch Self Locking Inching Relay Switch 10A, Tuya

If you can image it, you can probably ‘Smart Switch’ it with this versatile, cost effective 1 Channel Smart Relay board. Enables remote control of any devices or home appliances via WiFi through the Tuya application SmartLife application installed on your phone or tablet (Android or IOS). Simply ‘Wire, Configure and Play’.

Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever growing Smart Products. Supports Alexa, Google Home and IFTTT.

Note: this is the NEW Improved PC Board with Black relays  (previous version had Blue relays)

With so many smart home platforms available. Great way to make any appliance or device ‘Smart’.

Product Features (refer to additional images for connection & wiring diagrams)

Working Modes: selectable via the mode button to switch

self-locking mode: turn devices ON or OFF instantly.

 inching mode: toggle devices ON then OFF by tapping the PWR button on you phone

Manual Switching option via 1-2Ch Buttons on the PCB

Switching voltage range: 230VAC or DC , 10A

Wide PCB Input voltage range: 7-32VDC, 5-22VAC or micro USB 5VDC

LED indication

Small and Compact design. Ease of Installation. 0.7sec On or Off (simulates an existing remote control)Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.

Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.

All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app.

Available in 1Ch, 2Ch and 4 Ch variants. You can combine boards to obtain any number of smart switching contacts

Typical Uses

Unlimited Applications the 10A relay can be wired to either NC (normal closed) or NO (normal open) to switch any voltage up to AC250V/10A or DC30V/10A.
