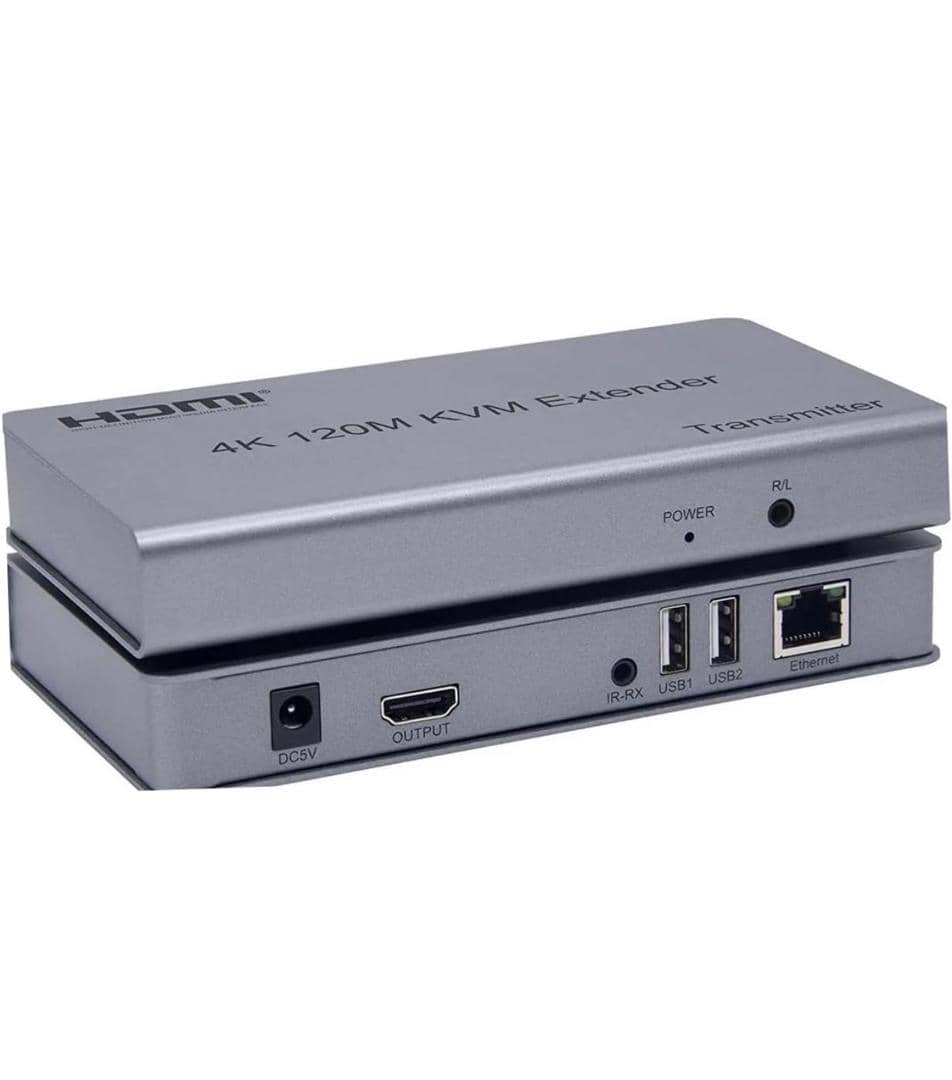

The Extender uses single cat6 (recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

Features :

Support HDMI 1.4/HDCP1.4.

Support local loop-out.

Support 120m long distance transmission.

Low power consumption, low temperature and high safety.

Both the TX and RX support 3.5MM left and right audio output.

Support IR control.

Support USB mouse and keyboard extension.

Specifications:

Length of CAT5e/CAT6 cable between Rx and TX 120 meters.

HDMI Input 4k/1080p/720p/576p/576i/480p/480i.

HDMI Output 4k/1080p/720p/576p/576i/480p/480i.

Max bandwidth 340MHz

Max baud rate 3×3.4Gbps

Input video signal 0.5~1.5Volts p-p

Output DDC signal 5Volts p-p (TTL)

Input HDMI cable distance ≤10m AWG26 HDMI standard cable

Output HDMI cable distance ≤10m AWG26 HDMI standard cable

TX Max working current 350mA

RX Max working current 200mA

Power adapter format Input: AC (50HZ, 60HZ) 100V-240V.

Output: DC5V/1A

Operating Temperature range (-15 to +55℃)

Operating Humidity range 5 to 90%RH (No Condensation)

Dimension (L x W x H) 107x105x27.3 (mm)

TX Weight 499g

RX Weight 494g.

Package Includes :

1. TX Extender 1pc

2. RX Extender 1pc

3. IR cable 1pair

4. DC Power adapter 2pcs

5. User Manual 1pcs.
