SPECIFICATIONS:

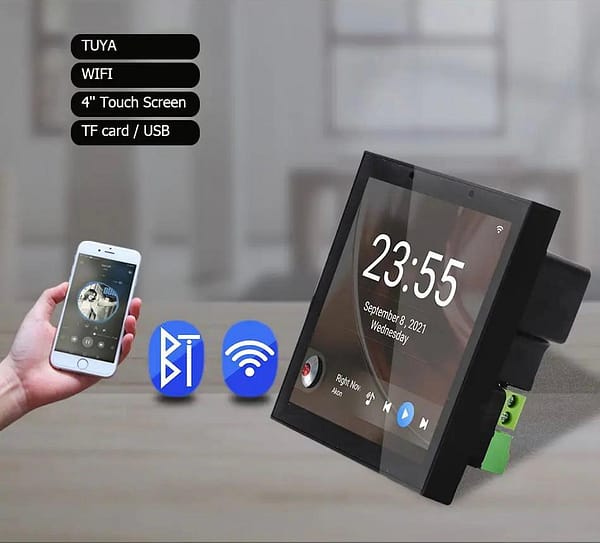

Mini Smart Home WIFI Amplifier With TUYA Hardware Parameters:

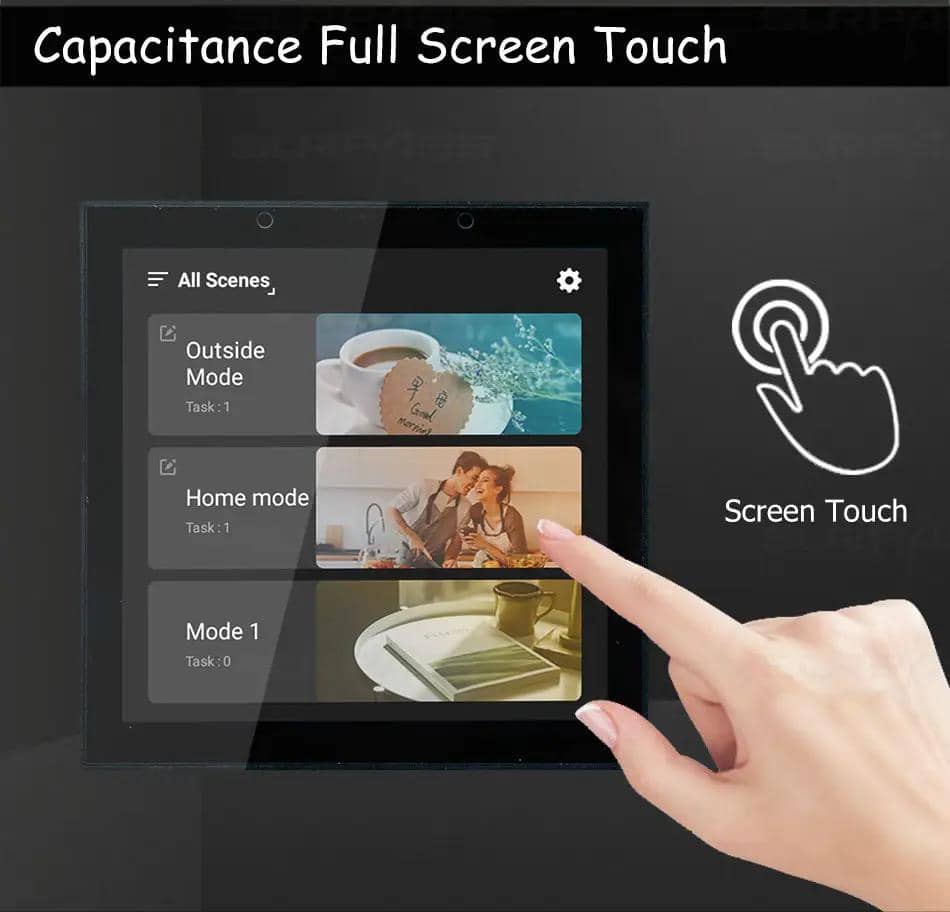

• Capacitance Full Screen Touch

• 4-inch IPS Display, 480*480 Resolution

• Android 8.1 System, 4 Core Processor, Cortex 1.2G CPU

• Power Supply Mode: AC 110-250VC

• Output Power: 2*20W or 4*15W (simulation power amplifier)

• Output Impedance: 4-80

• Audio Inputs; Output

• Network: Support WIFI

• Installation: 86 standard wire box, front wall

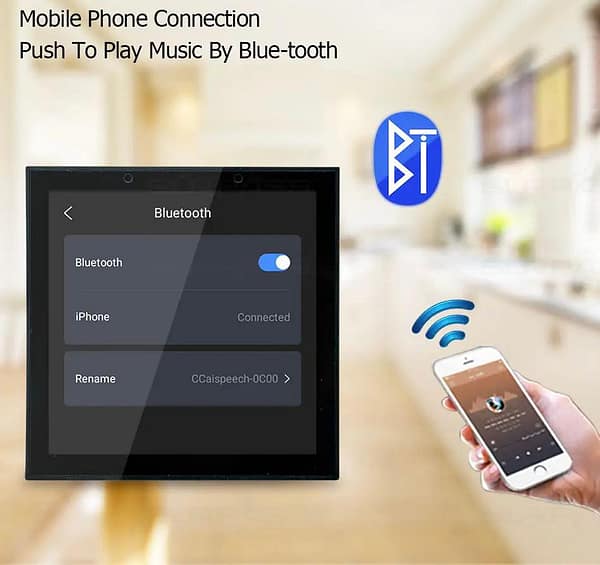

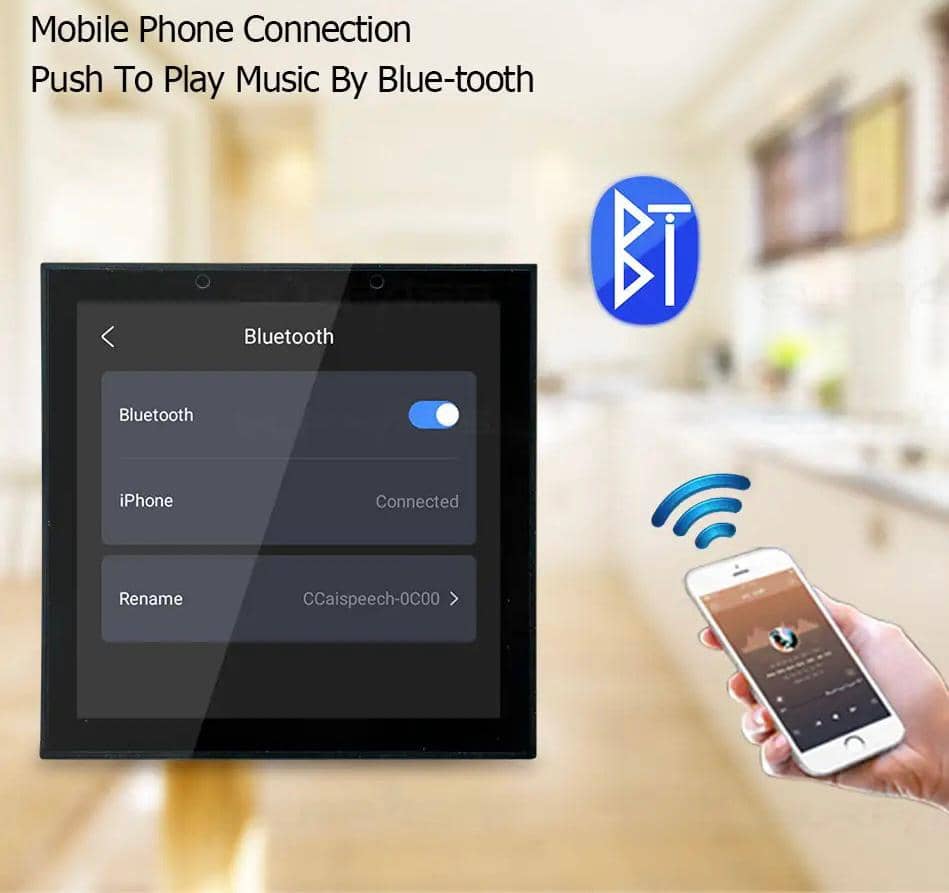

• Bluetooth: Support

• Frequency Response: 20Hz-20KHZ

• Total Harmonic Distortion: 0.03%(1W,1KHZ)

• Audio S/N: 96dB

• Product Size: 86*86*11MM

• Wire Box Opening Size: 86*86*57MM

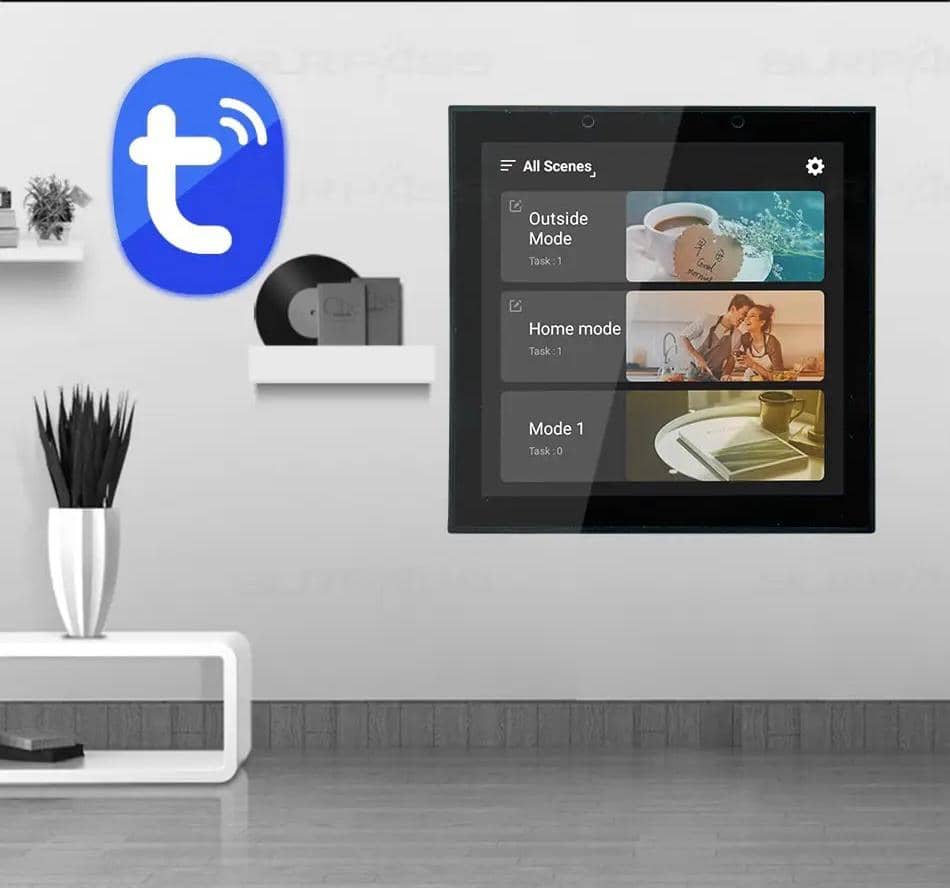

• Feature: support TUYA, TikTok, Spotify, BluetoothPlay, Go Keyboard, Pandora, etc.

Framless Stereo In-Ceiling Speaker Mini Size Specifications:

• Power: 10W

• Input: 80

• Speaker Unit: 4.5″x1

• Sensitivity (1W/1M): 89dB + 3dB

• Frequency Response: 100Hz-16KHZ

• Material: plastic frame + iron mesh cover

• Installation Cutout Size: Ф148mm

• Dimension: Ф160×56mm

• Net Weight: 0.42KG

(Vertical version and Horizontal version) 4 Gang Zigbee Switch and 4 Scene Button Specification:

Networking Methods: MESH

Power Supply Method: LIVE and Neutral Wire

Material: PC+ Alumina

•Voltage: 100-250V 50/60Hz

•Current: 10A Max

OMax Load: 500W/Gang

•Power Consumption: &It; 0.5W

•Working Temperature: 0°C~40°C

•Communication Frequency: 2.4G

•Communication Protocols: Zigbee

Switch Indicator: white when on

•Certification: FCC, CE, RoHS

•APP: Tuya Smart/Smart Life

PACKAGE INCLUDED:

1 × wall amplifier device

1 x remote control

1 x mounted box

1 × bracket and screw
